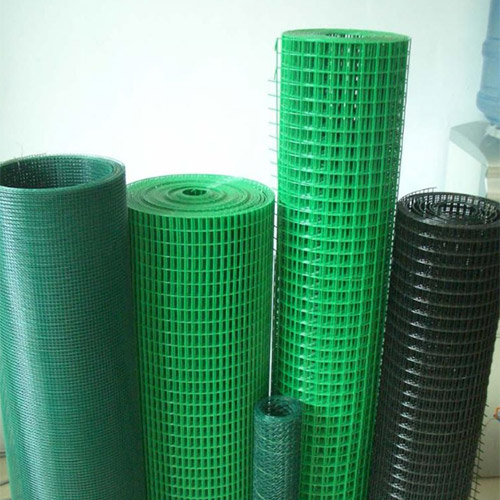

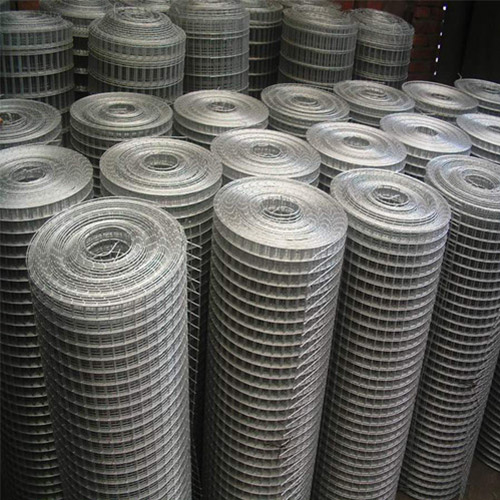

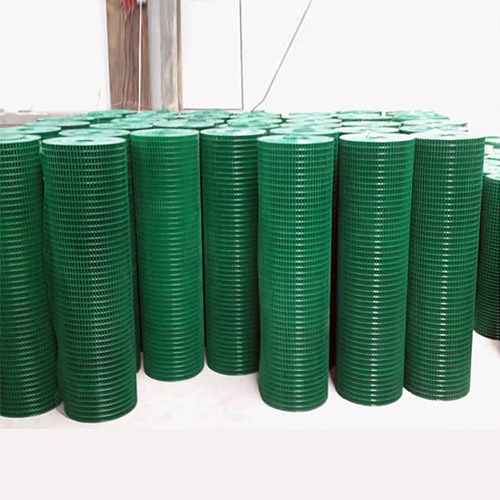

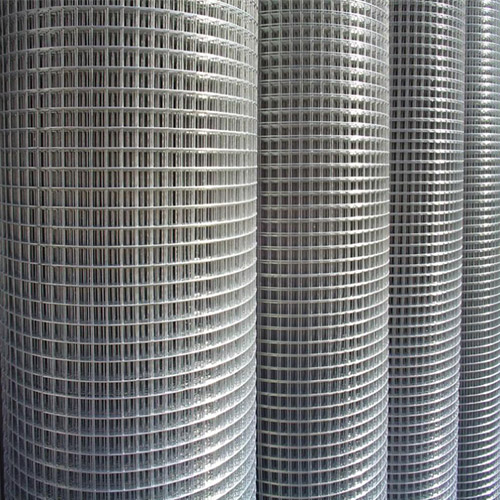

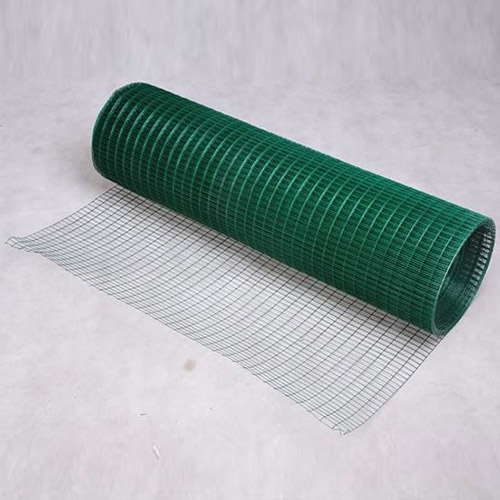

Welded Wire Mesh

Meteria: Low carbon steel wire, stainless steel wire
Welded Wire Mesh Variety:
Hot dipped galvanized after welding Welding with hot dipped galvanized iron wire Electro galvanized after welding Welding with electro galvanized iron wire PVC coated welded wire mesh.
Characteristics: it has the good property of corrosion-resisting and oxidation-resisting.
Usage:
It is widely used on the industry, agriculture, building, transportation, mine, field, lawn, cultivation, Profession's guard, decorate, machie protection etc.

Mesh		Wire Diam
Inch	mm	BWG	mm
1/4" × 1/4"	6.4mm × 6.4mm	22# - 24#	0.7mm - 0.6mm
3/8" × 3/8"	10.6mm × 10.6mm	19# - 22#	1.0mm - 0.7mm
1/2" × 1/2"	12.7mm × 12.7mm	16# - 23#	1.6mm - 0.6mm
5/8" × 5/8"	16mm × 16mm	18# - 21#	1.2mm - 0.8mm
3/4" × 3/4"	19.1mm × 19.1mm	16# - 21#	1.6mm - 0.8mm
1" × 1/2"	25.4mm × 12.7mm	16# - 20#	1.6mm - 0.9mm
1" × 1"	25.4mm × 25.4mm	14# - 21#	2.0mm - 0.8mm
11/2" × 11/2"	38mm × 38mm	14# - 19#	2.0mm - 1.0mm
1" × 2"	25.4mm × 50.8mm	14# - 16#	2.0mm - 1.6mm
2" × 2"	50.8mm × 50.8mm	12# - 16#	2.6mm - 1.6mm
Note: Special specifications can be customized.
