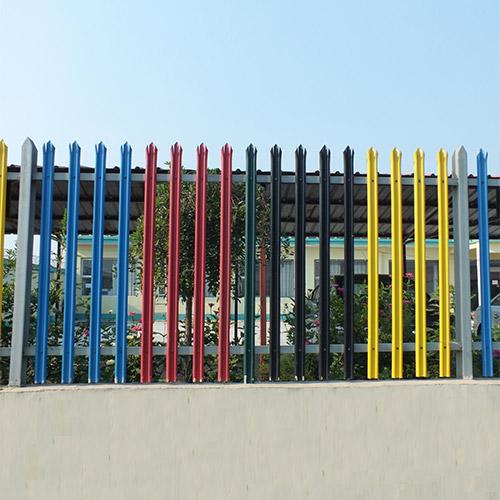

Palisade Fence

Palisade fence is the most popular choice for locations requiring a higher level of security and vandal resistance, and can be seen protecting premises of many different types throughout the UK, the USA , Australia and so on.
Galvanized steel palisade fencing is especially popular for schools and industrial sites because of its high damage resistance and the fact that it is so difficult to climb.
HEIGHT
Fencing is supplied to ISO in a standard range of 1.8,2.0,2.1,2.4,3.0 and 3.6 meter height.
In according nonstandard fence configuration can be manufacturer for specific requirements.

material	Q235/Q195 low carbon steel
Height of fence	1.5m, 1.8m, 2.0m, 2.1m, 2.4m, 3.0m
Width of fence	2.5m, 2.75m or 3.0m
Perforated panel / Solid panel	W/D pale thickness:1.5mm 2.0mm 2.5mm 3.0mm Angle steel rail :30mm×30mm×3.0mm
Tope of pale	Single Pointed, Triple pointed,  Rounded, and notched, Flat .
Pale thickness	1.5mm, 2.0mm , 2.5mm , 3.0mm
Top and Bottom rail	50mm×50mm×4.0mm/5.0mm /6.0mm
RSJ post	100mm×55mm×3.5mm
Fish plate	150×30×8.0mm
Fixing bolts and rivets	M8×25/40mm-34sets and M12×30mm-4sets
Surface treatment	Hot dipped galvanized (550g/m2) Galvanized and PVC powder coated

PALING HEADS
We supply a selection of heads that can be used with our fencing systems and care should be taken to select the
correct head to suit the requirement needed for your project.
FIXINGS
M8 BOLT: M8 bolt with tamper proof snap off cone nut,  suitable for use with general purpose(GP) and security palisade fences(SP).
M8 RIVETS: 8mm rivets with collars.

Type	Pale size	Pale Thickness	Height	Width	Angle Rail	Post	Post Length
PALES-W	68	2.0 2.5 3.0	1800	2750	L50X50X5.0L50X50X6.0	IPE100x55 IPE120x74 SHS80x80x3.0 SHS100x100x4.0	2400
			2100				2700
			2400				3000
			3000				4000
PALES-D	68	2.0 2.5 3.0	1800	2750	L50X50X5.0L50X50X6.0	IPE100x55 IPE120x74 SHS80x80x3.0 SHS100x100x4.0	2400
			2100				2700
			2400				3000
			3000				4000
PALES-L	56	3.0 3.5 4.0	1800	2750	L50X50X5.0L50X50X6.0	IPE100x55 IPE120x74 SHS80x80x3.0 SHS100x100x4.0	2400
			2100				2700
			2400				3000
			3000				4000
