Gabion Basket

Share to:
sharethis sharing button
  • ShengXin

  • Hebei Anping

  • ISO9001

  • Xingang, Tianjin

  • 200 Set/Sets

  • 3000 Set/Sets per Month

  • L/C,T/T

Quantity:
Gabions Technology of Gabions:
Gabions are double twisted hexagonal metal cages weaved by corrosion resistant low-carbon galvanized steel wire, assembled according to engineering requirement and filled with stone and other fillings. This honeycomb structure is a kind of connatural block fitting dynamics principle best, able to bear the tension and absorb unknown pressure.

The technology can better achieve organic combination of engineering structure and ecological environment, becoming the first choice of protecting river beds, treating landslides, preventing debris flow and rockfall as well as protecting environment.

Gabions are mainly made of four types of materials:
(1)  Galvanized steel wire: Excellent low-carbon steel wire, diameter: 2.0mm-4.0mm, tensile strength: no less than 380Mpa. The surface adopts hot galvanization for protection. The depth of the protective galvanized layer (max. 300g/m2) is decided according to customer demands.
(2)  Zinc-5% aluminum-mixed mishmash alloy steel wire: (also called galfan steel) a new kind of material appearing recently with corrosion resistance 3 times of traditional pure galvanization; diameter: 2.0mm-4.0mm; tensile strength: no less than 380Mpa.
(3)  Galvanized steel wire with plastic coating: Excellent low-carbon steel with PVC or PE protective coating on the surface which will be weaved into various gabions. This protective coating will greatly increase the protection in high pollution environment. In addition, the options of different colors enable it merge into the surrounding environment.
(4)  Zinc-5% aluminum-mixed mishmash alloy steel wire: alloy steel wire with PVC or PE protective coating on the surface which will be weaved into various gabions. This protective coating will greatly increase the protection in high pollution environment. In addition, the options of different colors enable it to merge into the surrounding environment.

Weaving of Gabions:
I.Gabions are molded once. Except cover plates, the edge plates, end plates and bottom plates are inseparable. Length/width tolerance (±5%) height tolerance (±5%). The interior part is isolated into independent units by adopting clapboards every other 1m.
II.Gabions adopt assembly mode. The cover plates, the edge plates, end plates and bottom plates are separately assembled into cages wound by spiral steel wire. All the edge wire of the cage adopts thick wire to improve the strength of the gabions.

Main Specifications:

Dimensions of Gabions (m) Mesh Model

8*10 6*8
Length   Width Height Galvanized or Plastic Coated Galvanized or Plastic Coated

Net Steel Wire Diameter Galvanized
weight
Net Steel Wire Diameter Galvanized
Weight
2m 1m 1m 2.7mm >245g/m2 2.0mm >215g/m2
3m 1m 1m Edge Steel Wire Diameter Galvanized
weight
Edge Steel Wire Diameter Galvanized
Weight
4m 1m 1m 3.4mm >265g/m2 2.7mm >245g/m2
6m 1m 1m Bonding Wire Specification 2.7mm Bonding Wire Specification 2.0mm

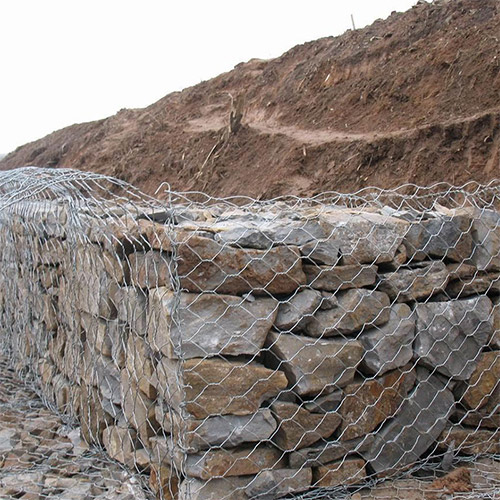

Gabion-box  Gabion-box5
