Deer Fence

horse fence/cattle fence/grassland fence/deer fence
Material: hot-dipped galvanized wire ,which is made of Q235  iron rod.
Features: made by automatic machine. it enjoys perfect structure.good Appearance,corrosion resistance&stretching resistance etc.

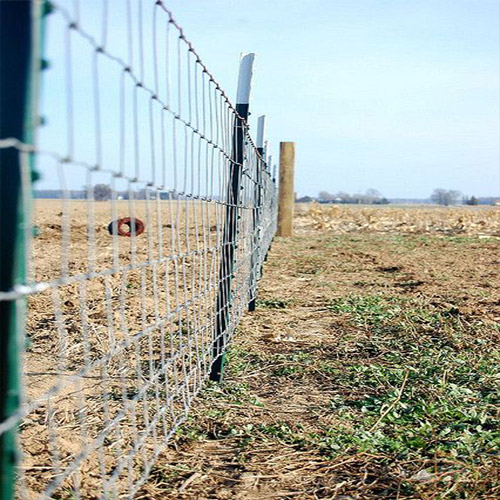

Application :field fence is a kind of mesh used in cattle ,goat,deer,and pig.it is used for grassland ,pastures,protection of ecological projects,protecting grassland ,forestry ,highway and environment.

Cattle fence Specification:

Sequence    number	Style	Specification	Total weight (kg)	Edge wire Diameter (mm)	Inner  wire Diameter(mm)
1	7/150/813/50	102+114+127+140+152+178	19.3	2.5	2.0
2	8/150/813/50	89(75)+89+102+114+127+140+152	20.8	2.5	2.0
3	8/150/902/50	89_102+114+127+140+152+178	21.6	2.5	2.0
4	8/150/1143/50	102+114+127+140+152+178+203 =	22.6	2.5	2.0
5	9/150/1245/50	114+127+140+152+178+203+229	23.6	2.5	2.0
6	9/150/991/50	89(75)+89+102+114+127+140+152+178	23.9	2.5	2.0
7	10/150/1245/50	102+114+127+140+152+178+203+229	26	2.5	2.0
8	10/150/1194/50	89(75)+89+102+114+127+140+152+178+203	27.3	2.5	2.0
9	10/150/1334/50	89+102+114+127+140+127+140+152+178+203+229	28.4	2.5	2.0
10	11/150/1442/50	89(75)+89+102+114+127+140+152+178+203+229	30.8	2.5	2.0

Material	Galvanized	Wire diameter			Space	height	length
		Edge wire	Inside wire	Knot wire
Low carbon steel wire High strength Steel wire	40-60g 200-220g	2.0mm 2.5mm 3.4mm	2.0mm 2.5mm	2.0mm	150mm 200mm	1m 1.2m 1.7m 2.5m etc.	50m 100m
