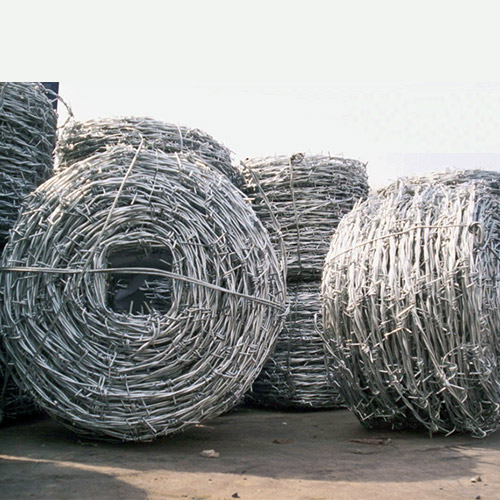

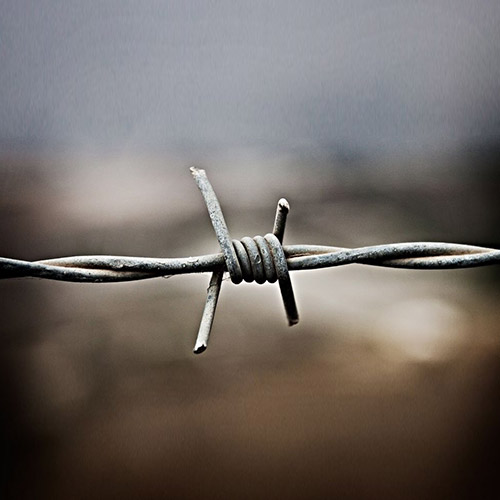

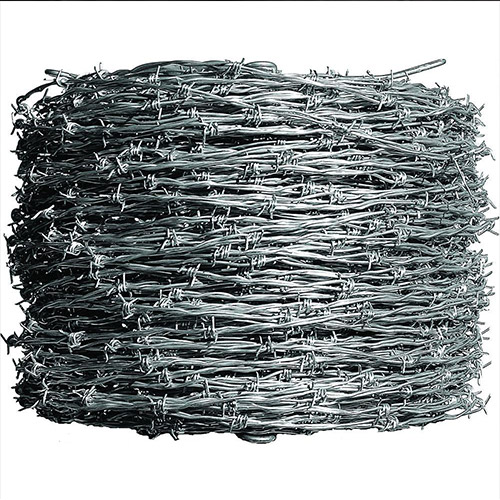

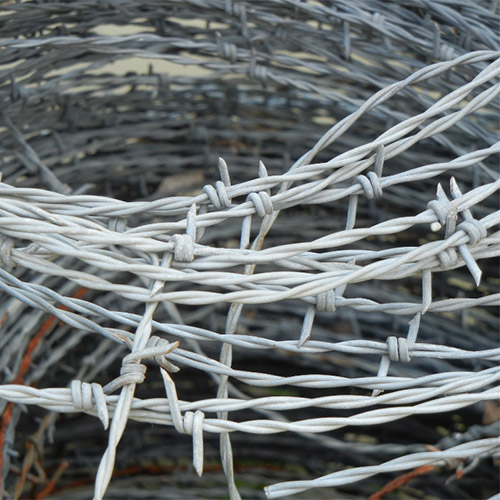

Barbed Wire

Barbed Wire
Raw Material: quality low carbon steel wire (galvanized, PVC coated, plastic sprayed)
Weaving character: General
Use: Barbed Wire mainly serves in protecting of grass boundary, railway, highway, etc.

Wire Gau B.W.G.	Length Per KG
	Barb Distance 3"	Barb Distance 4"	Barb Distance 5"	Barb Distance 6"
12x12	6.0617	6.7590	7.2700	7.6376
12x14	7.3335	7.9051	8.3015	8.5741
12-1/2x12-1/2	6.9223	7.7190	8.3022	8.7221
12-1/2x14	8.1096	8.814	9.2242	9.5620
13x13	7.9808	8.899	9.5721	10.0553
13x14	8.8448	9.6899	10.2923	10.7146
13-1/2x14	9.6079	10.6134	11.4705	11.8553
14x14	10.4569	11.6590	12.5423	13.1752
14-1/2x14-1/2	11.9875	13.3671	14.3781	15.1034
15x15	13.8927	15.4942	16.6666	17.5070
15-1/2x15-1/2	15.3491	17.1144	18.4060	19.3386

PVC Barbed Wire
Core: galvanized wire or black annealed wire.
Color: green, blue, yellow, orange, gray and others.
T.S.: 30-45kgs/sqm
Packing: 25kg/coil or 50kg/coil, PVC strip wrapped

Inner Wire Dia	Outer Dia
1.0mm-3.5mm	1.4mm-4.0mm
BWG.11-20	BWG.8-17
SWG.11-20	SWG. 8-17
Note：P.V.C. Thickness：0.4mm-0.6mm
